Tractor, harvester IT comes of age
Over the last halfdecade, digital technology has appeared to be the “must-have” for tractor and machinery companies, who believe that bringing IT to tractors and farming will offer its customers huge benefits.

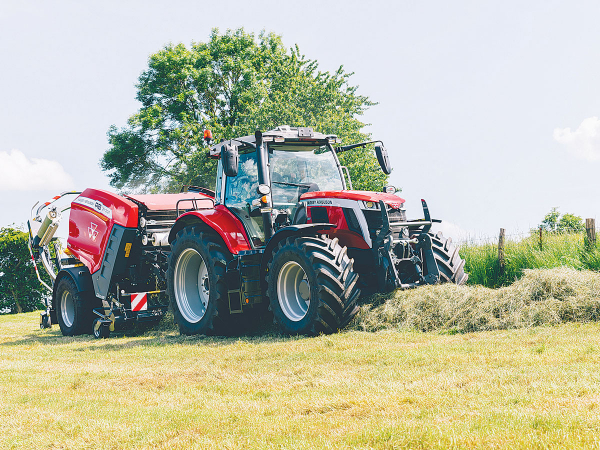

A range of modern, neo-retro tractors from 135 to 200hp, the new models take much of the design detail from the recently arrived 8S Series. Compact and powerful, the five model range is equipped with four-cylinder, 4.9 litre AgcoPower engines.
The 6S.135, 6S.145, 6S.155, 6S.165 and 6S.185 push out rated horsepower of 135, 145, 155, 165 and 185hp respectively.
With Electronic Power Management (EPM), these outputs climb to 150, 160, 175, 185 and 200hp, while maximum torque outputs hit 650, 700, 750, 800 and 840Nm. An ‘all-in-one’ SCR system ensures the engines meet the latest Stage V emission standards, utilising a maintenance-free unit tucked neatly under the cab, with no impact on visibility or performance.
Transmission choice on all models includes seamless shifting from the Dyna-VT Super Eco, or the Dyna-6 Super-Eco, semi-powershift with AutoDrive. Designed and built ‘in-house’, both transmissions feature the Power Control lever on the left-hand side of the steering column. This provide clutchless F/R shuttling, with an adjustable response, shifts speeds up or down and selecting neutral.
Dyna-VT transmissions are now equipped with a new Automatic Mode, allowing the operator to adjust forward speed with the Multipad lever or the foot pedal. Meanwhile, the engine speed is automatically regulated according to the load and speed.
The hand throttle now also sets a lower engine speed limit – with rpm never dropping below this limit. The new Super Eco version of the Dyna-VT reduces fuel consumption by achieving 40km/h at just 1,450rpm.
The Dyna-6 Super Eco 24 x 24 semi-powershift transmission achieves a top speed of 40km/h at a low 1,500rpm and features AutoDrive on all models to automatically shift speeds relative to the engine load and speed. Those working in specialist crops can specify a Super Creeper option, which provides speeds down to 70m/h at 1,400 rpm.
All MF 6S tractors also provide the useful brake-to-neutral function, which also disengages drive when the brakes are applied.
Said to be light but immensely strong, the range offers best-in-class power-to-weight ratio, along with high gross vehicle weights of up to 12.5 tonnes and gross combination weights of 44.5 tonnes. A turning radius of just 4.75m, combined with a 2.67m wheelbase, offers maximum manoeuvrability, said to be the tightest of any 200hp tractor.
The new MF 6S Series is available with Essential and Efficient levels of specification. Along with a wide range of options, these allow owners to tailor their tractor and level of investment to match their specific requirements.
A new armrest, which is linked to the seat, contains everything operators need to operate the engine, transmission, hydraulics, linkage and PTO as well as switches for the radio and phone. Loader operators will welcome the Visio Roof option, which greatly improves vision for handling work, providing a clear view of the load through the lift range.
All main tractor functions are run from a single new Multipad, ISOBUS-compatible controller.
This covers functions such as linkage control, cruise settings, driving mode pre-sets and MF Guide activation – as well as a micro joystick to control two electric spool valves. Another multifunction joystick option offers control of the loader or front linkage, as well as enabling operators to change direction and control the tractor speed. Significant changes to the modern Datatronic 5 terminal increase functionality, utilising a brighter, 9” touchscreen with an anti-glare surface, new short-cut keys and tablet style operation.
At the business end, a 9,600kg rear linkage capacity and powerful 110 litre/min closed-centre, load-sensing hydraulics allow easy operation of a wide range of implements. Those requiring more flow can specify a 150 litre/min option Dyna-6 models, while Dyna-VT tractors come with a 190 litre/min option.
