Thursday, 16 February 2012 09:44

New feed mixer fits regardless

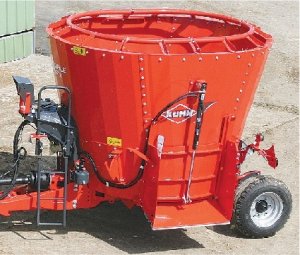

MIXED RATION vertical mixers don't come much more compact than the Kuhn Profile, remarks Kuhn New Zealand.

And the size and manoeuvrability of this one means farm size and building configuration do not limit its use.

The Kuhn Profile 470-670 comes with capacities 4m3 (model 470) and 6m3 (model 670). The smaller version has an overall height of 2.08m thanks to the position of the axle at rear of the body.

The small diameter (1.69m) mixing auger requires only a 40 hp tractor.

Features include:

Auger gearbox and drive: a product of Kuhn technology, the angle gearbox is of prven reliability, the maker says. The same gearbox is used on 27m3 machines.

The mixing auger has the same features as the rest of the range (two double bent scrapers, double pitch at the end of the auger) to quickly calibrate fibrous rations and make a homogeneous mixture.

The polygonal body profile concept strengthens the bin structure to reduce deformation.

Welded counterframe: two side members welded to the pre-stressed body are positioned along the length of the machine to absorb the strain resulting from towing.

Distribution systems include feeding on the right and/or left hand side with a chute and/or a tilting conveyor.

Geometrically symmetrical, i.e. the drawbar and axle can be reversed to distribute feed on the right instead of the left.

Available in direct or electric control, the Profile works with the hydraulic systems of any tractor. Counter-knives are standard for fine chopping.

Three-point electronic weighing system is standard, either in a simple version or optional programmable version, to simplify power management.

Height and width adjustable feed chute on the right and/or left.

Tel. 0800 585 007

More from this category

Whitehaven Wine Company
WHEN SYNLAIT asked Permbrand owner Russell Crossen for help with teat sealing 2500 heifers, he didn't take long to solve their problem.
Whitehaven Wine Company
SOUTHLAND INVENTOR Lindsay Lewis will promote his Clean Green Effluent system at Lincoln even though Environment Southland remain unconvinced of it's efficacy.
Whitehaven Wine Company
SPRING-LESS AND unbreakable gate handles from Beattie Insulators, Kaikoura, have a newly designed one-piece hook with connection for bungi, tape or wire.
Whitehaven Wine Company
A GIFT of six Honda farmbikes will help raise money for Christchurch via National Bank Young Farmer Contest charity auctions.
Whitehaven Wine Company

INSTALLING MILK meters in dairysheds can increase production by allowing supplementary feed to be targeted to the cows that most need it, says Dairy Automation Ltd (DAL) general manager Simon Thompson.

A NEW effluent system on Campbell and Rebecca Shuker's Otaua, Waikato, farm is helping them realise their vision for greater productivity on soils that need careful nurturing and care.

FOR DAIRY farmers needing help shifting pod irrigators, GPS guidance pioneer Tracmap now has a product to track the daily shifts required of irrigation lines.

GORSE SNEAKING through on the edges of lanes is killed by a Southland dairy farmer using a new Spraysmart Target 600 sprayer from Otautau Tractors and Machinery.

MILKSOLIDS PRODUCTION is way up and calving this season is expected to be higher on a Waikato farm which last winter installed an in-shed feeding system.

DAIRY FARMING'S worst-of-all job – shifting travelling effluent irrigators – is said to be easier and cleaner with the Ezi 018 made by Ezi Irrigation.

No more shifting one hose at a time, says developer Jeff Riordan. The Ezi 018 attachment behind an ATV can tow up to six sections of hose at a time, attached by camlocks.

And the travelling irrigator can be attached to a tow ball on top of the Ezi 018, so all the pipes and the irrigator can be shifted simultaneously.

An irrigator near the end of its run up a paddock is often pulling many metres of full, heavy effluent hose. This puts extra strain on the drive mechanism of the sprinkler and can cause it to stop moving forward, leading to ponding.

To reduce this drag Ezi 018 enables the farmer to bring the middle section of the drag hose forward, reducing the length of heavy hose the sprinkler has to pull.

"This can be done while the irrigator is working and with the hose full it slides around the Ezi 018 with less chance of folding," says Riordan.

Tel. 03 525 9832
